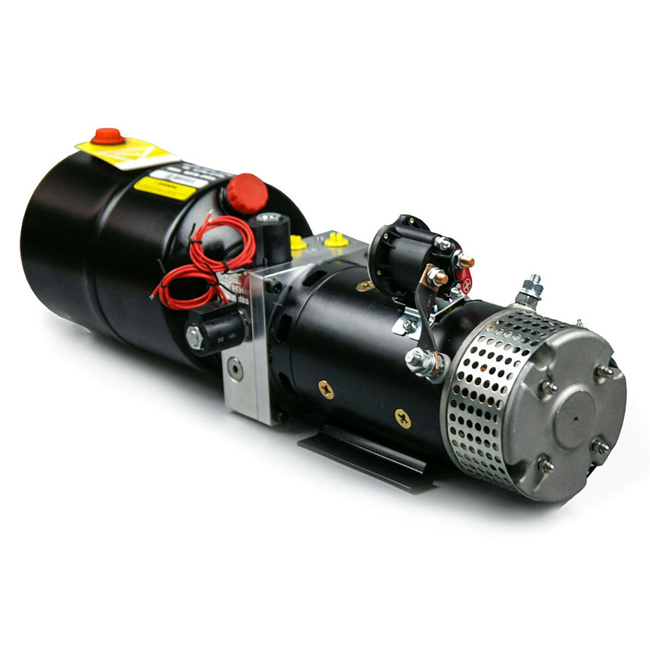

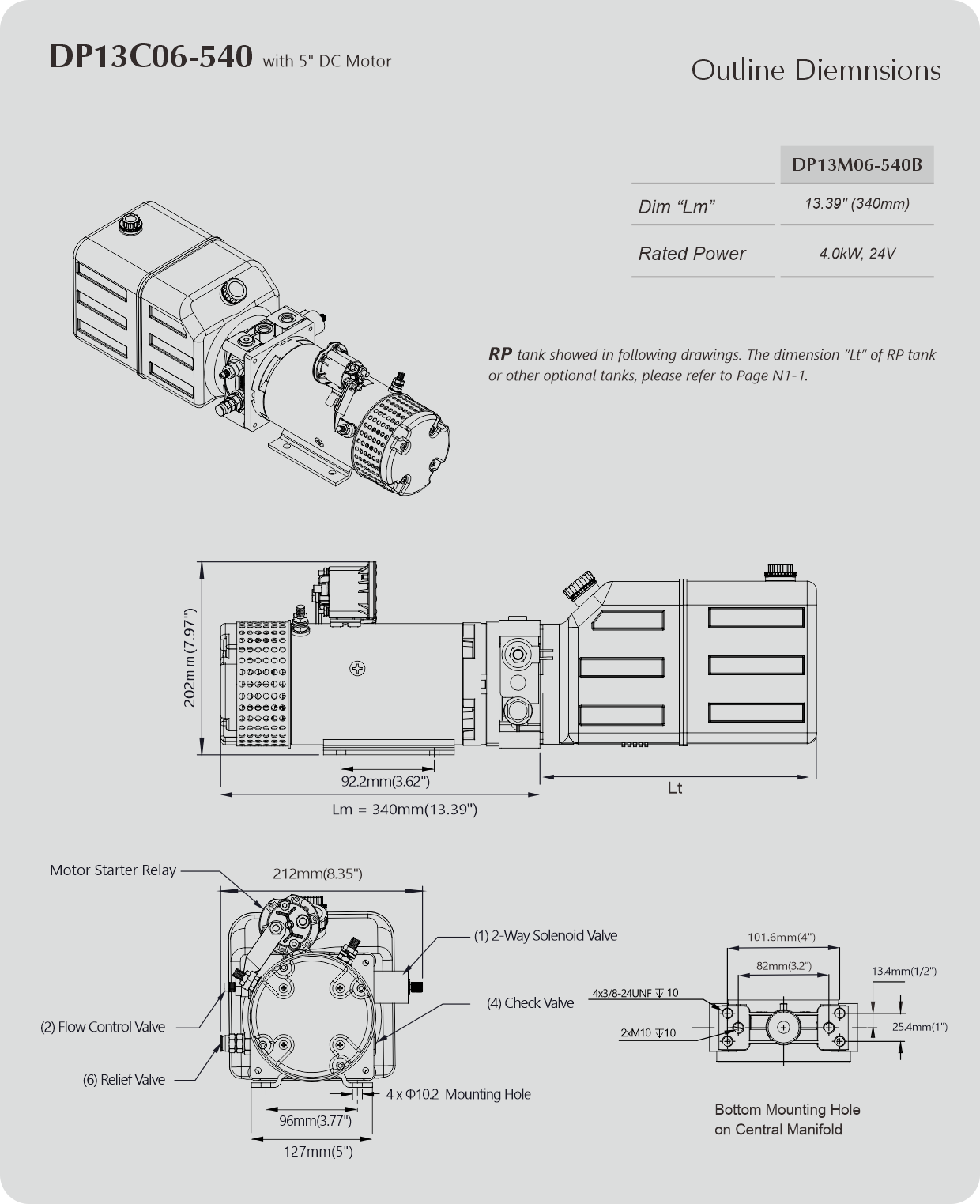

DP13C06-5, Single Acting

DC Hydraulic Power Unit, Single Acting, 3.3kw to 4.5kW, DC24V

▍Driving single acting hydraulic cylinder extending or retracting, force or gravity back

▍Choose the appropriate power and pump size according to the load of your application. Please refer to Chart of Flow Rated vs. Pressure or, or consult us.

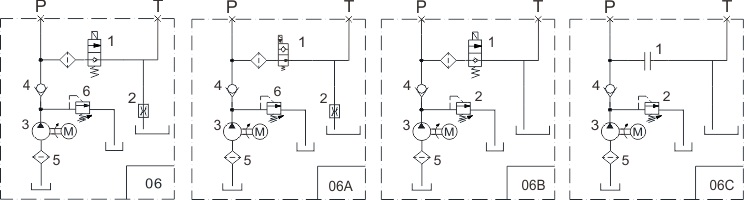

▍Four options for controlling the Return Flow (down speed) by flow control valve (2):
1) Non-Adjustable. 2) Non Adjustable, with pressure compensate . 3) Adjustable, with pressure compensate .
4) No flow control Valve

▍Three options for 2-way valve(1): 1) Manual Valve, 2) Solenoid Valve, 3) Solenoid Valve with Manual Override

▍Duty cycle is generally S2-1 minute, S3 - 15%, It may be varies with loads , please consult us.

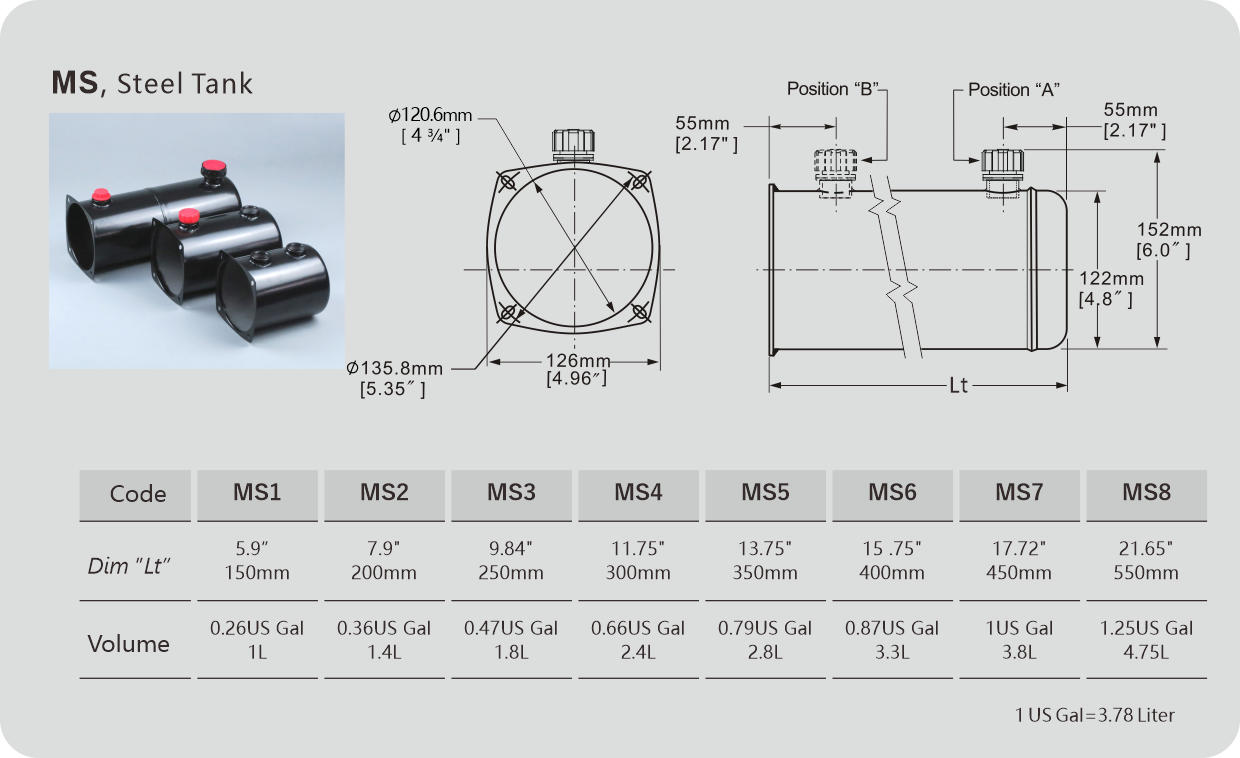

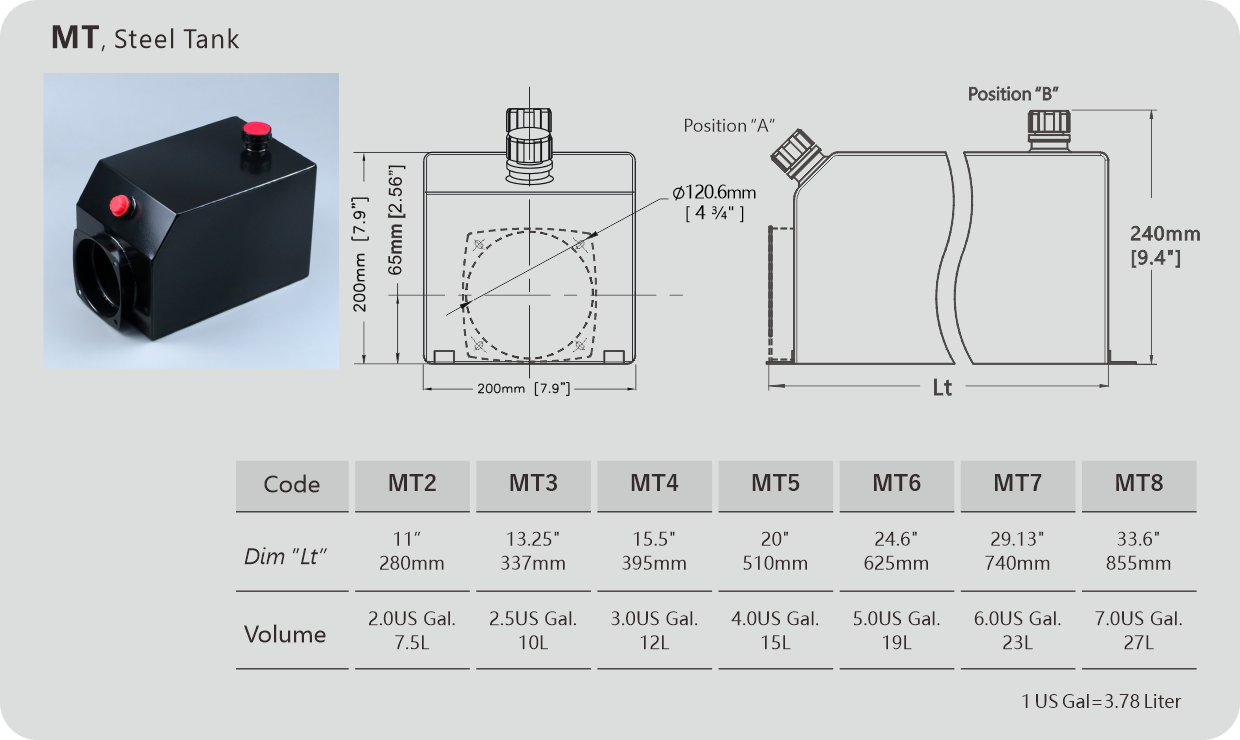

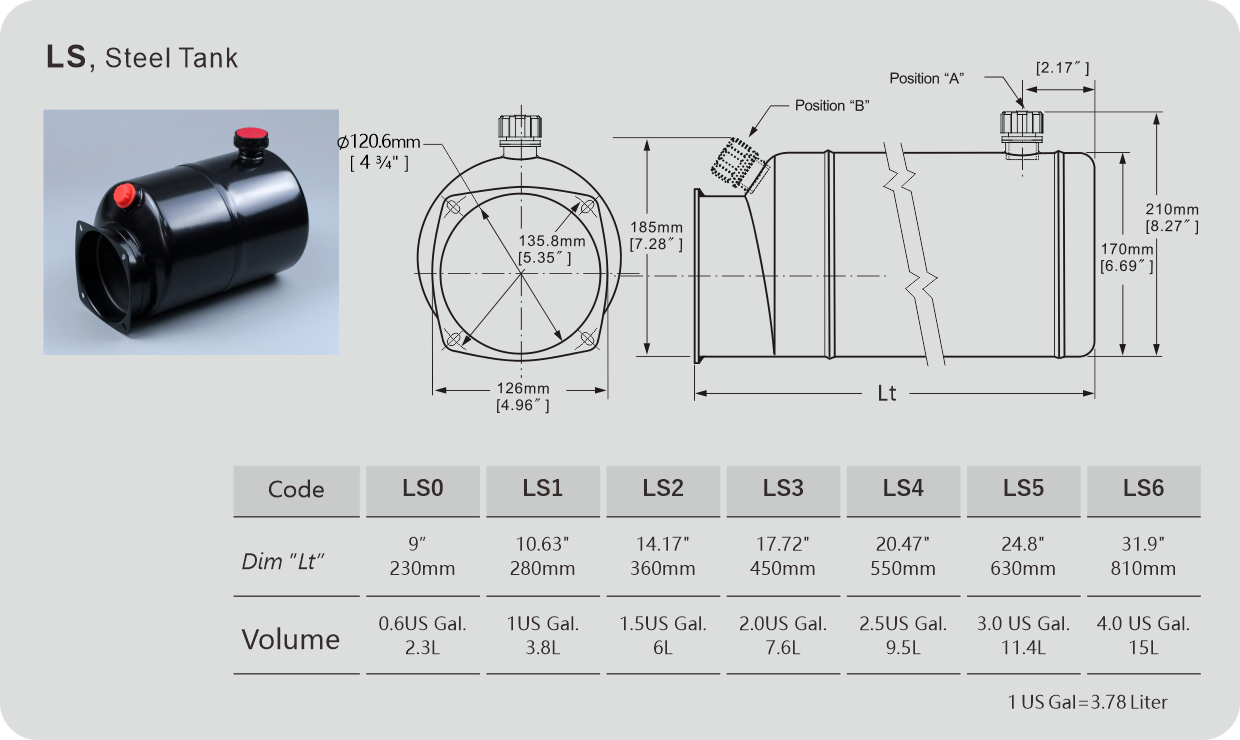

▍Optional Tanks: Type MS, and Type LS, RP, LT and MT

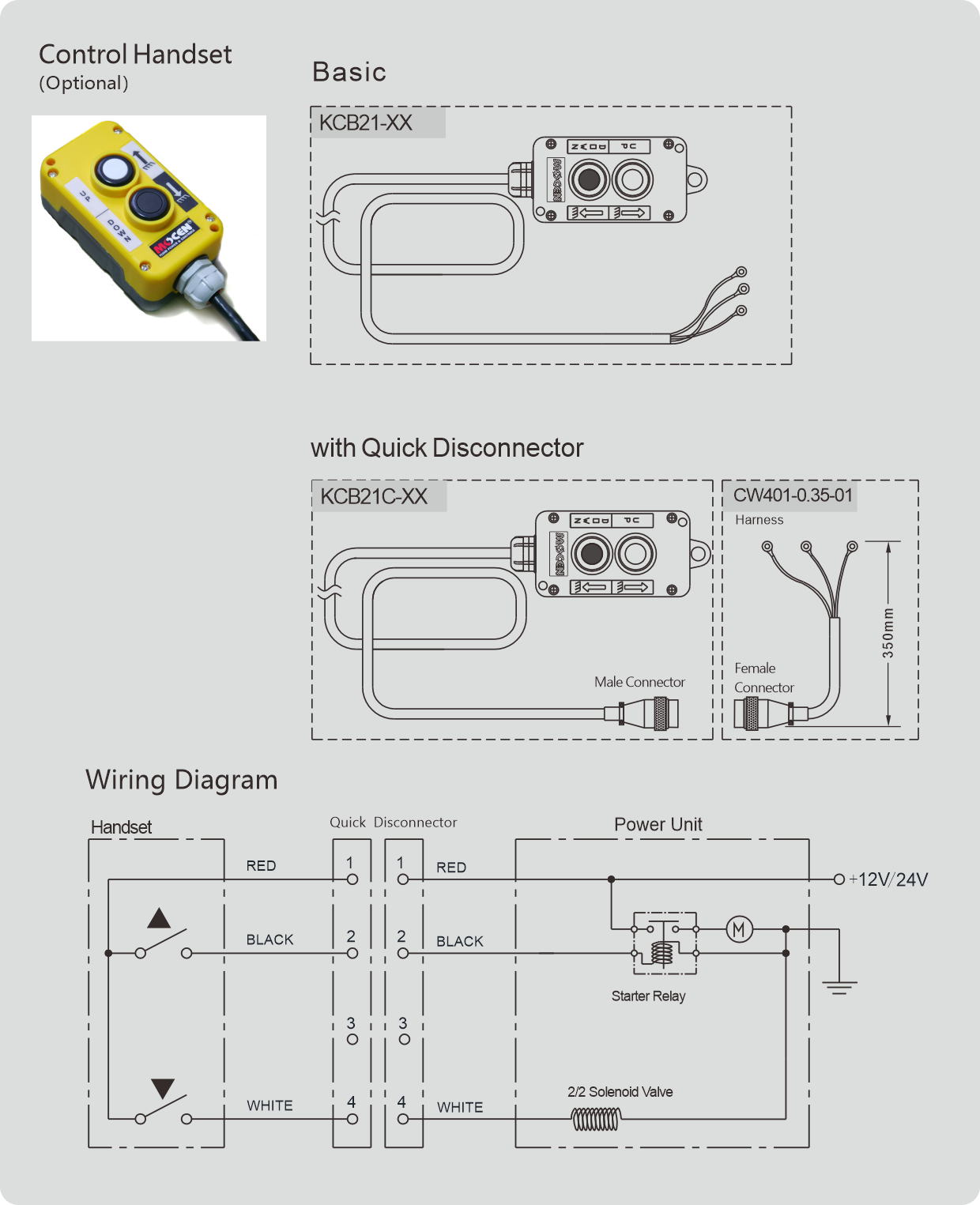

▍Controller Options: KCB21, the basic remote control handset,

▍Port P and T, standard options: 1) G3/8 (BSPP 3/8"), 2) SAE#6(9/16-18UNF), 3) 3. M14

Product features

Alternative available tanks
