Your position：Home Products Hydraulic System DC Hydraulic Power Units DP11 Series(150-800W)

Download Tech Info

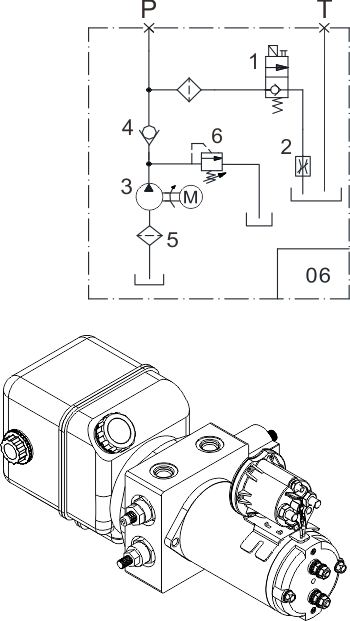

DP11M06-*-RS, Single Acting

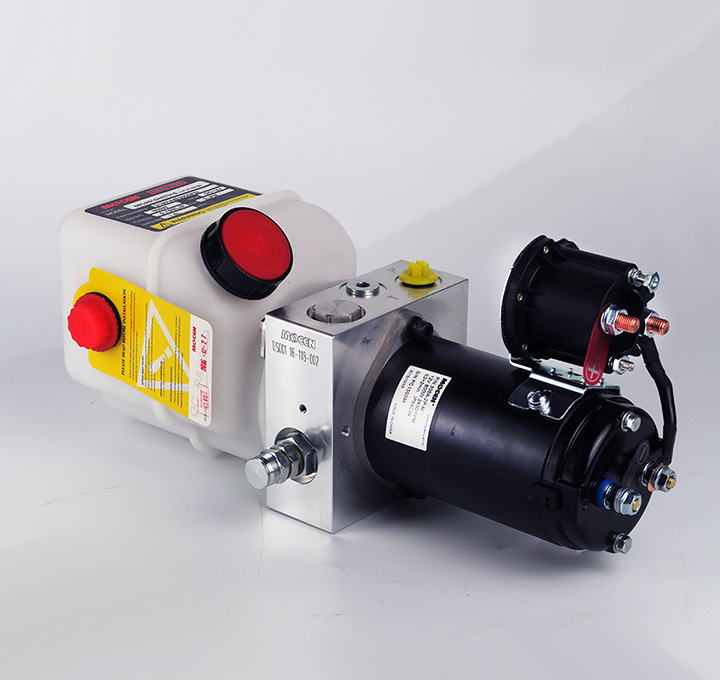

Mini DC Hydraulic Power Unit, Single Acting, DC 12/24V, 150-800W, 21Mpa Max

▍ Driving single acting hydraulic cylinder or hydraulic motor .

▍ Choose the appropriate power and pump size to meet your application.

▍ Options for controlling the Return Flow (down speed) by flow control valve (2):
1. Non-adjustable.
2. Non-adjustable, with pressure compensate .
3. Adjustable.

▍ Three options for 2-way valve(1), 1- Manual Valve; 2.-Solenoid Valve; 3-Solenoid Valve with Manual Override

▍ Duty cycle is generally S2-1 minute, S3 - 15%, It may be varies with loads , please consult us.

▍ Port P and T, standard options: 1. G1/4 (BSPP 1/4") ; 2. SAE#6(9/16-18UNF); 3. M14 X1.5, to custom-built other port size, please consult us.

Product features
