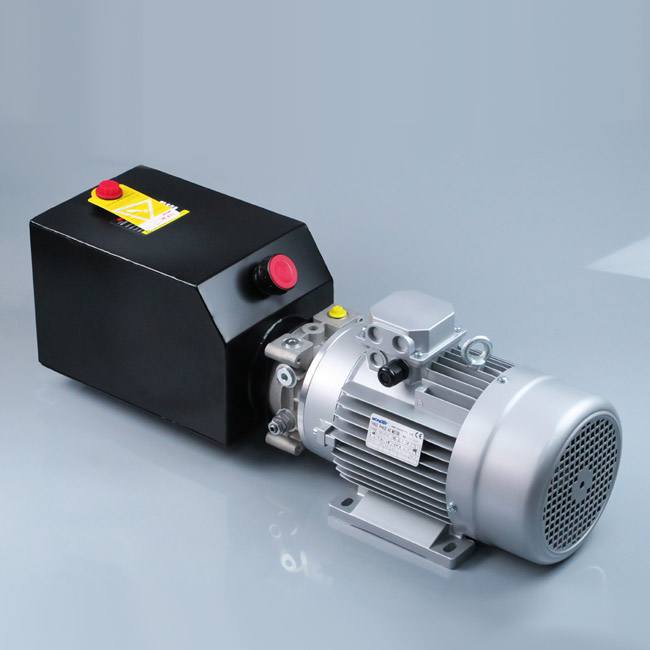

AP13M06-E*T-MT, Single Acting



AC Hydraulic Power Unit, Single Acting, IEC Three Phase Motor, 0.37kW to 4kw


Driving single acting hydraulic cylinders extending and retracting

Choose the appropriate power and pump size according to the load of your application.

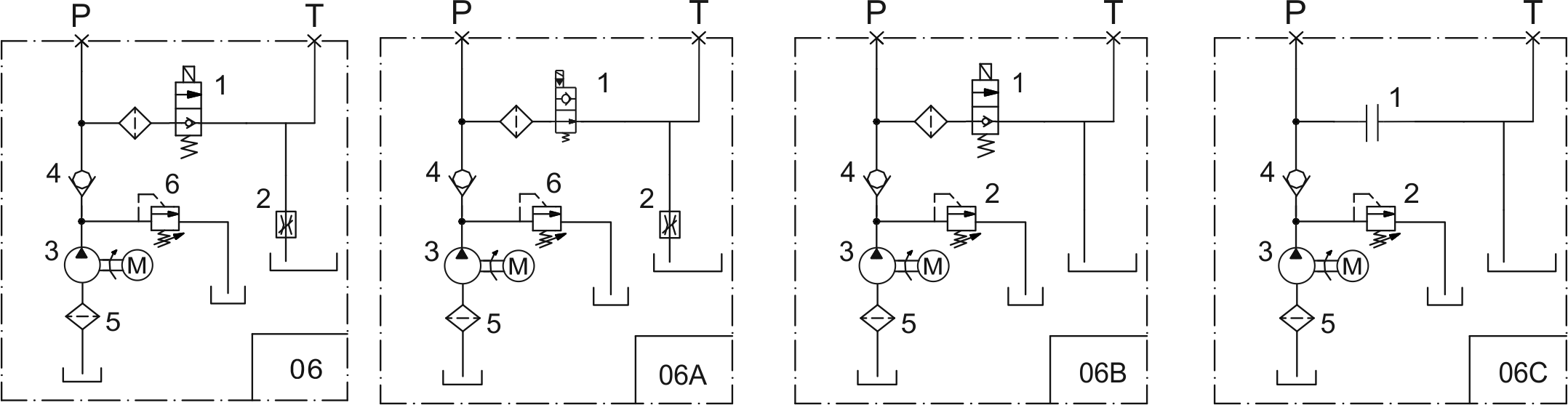

Options for 2 -way valve(1) :1) Solenoid Valve,     2) Solenoid Valve with Manual Override
Four options for controlling the Return Flow (down speed) by flow control valve (2):
1.  Non-Adjustable.
2.  Non Adjustable, with pressure compensate .
3.  Adjustable, with pressure compensate .
4.  No return flow controlDuty cycle is generally S2-1 minute, S3 - 15%. It may be varies with loads , please consult us.

Duty cycle is generally S1 continuous duty.  It may be varies with loads , please consult us.

Port P and T, standard options: 1) G3/8 (BSPP 3/8"),  2) SAE#6(9/16-18UNF),  3. M14. To custom-built other port size, please consult us.

Optional Tanks:  Series RP, LS, LT, MS, MT, details refer to page BB.

Controller Options:  KCB21 Series, the basic remote control handset,
