Features:

- Miniature size, super compact.

- Total enclosure with aluminum housing.

The electrical motor, pump, valves are built into an anodized

Aluminum square housing.

Advantages:

- High protection grade, up to IP68

- Low Noise.

- Miniature size could be fit in very small space.

- All-weather capability, working stable even in worst conditions.

Functions

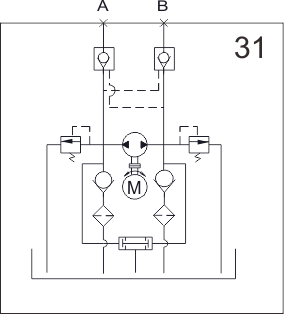

-   Driving double acting hydraulic cylinder extending or retracting.

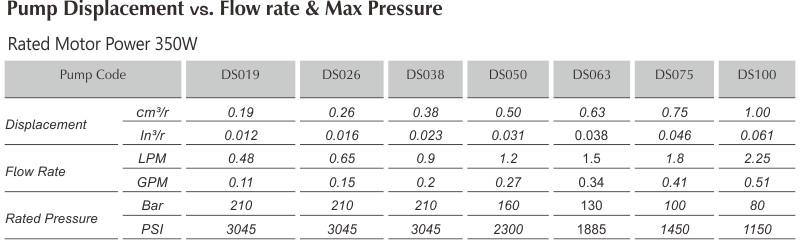

- Choose the appropriate pump size according to the load of your application. Please refer to Page A-01 or consult us.

- Port P and T, standard options:

1. G1/4 (BSPP 1/4")

2. NPT 1/8"

3. M8X1

To custom-built other port size, please consult us.

- Available Motor Size

1.  Rated Power 350W, AC 220V, 50Hz, Single Phase

2.  Rated Power 350W, AC 380V, 50Hz, Three Phase

- Duty Cycle:

Intermittent running, S2=30s, S3 15% ED.  It may be varies with loads , please consult us.

- Max Pressure Output: 170Bar (2450PSI)
