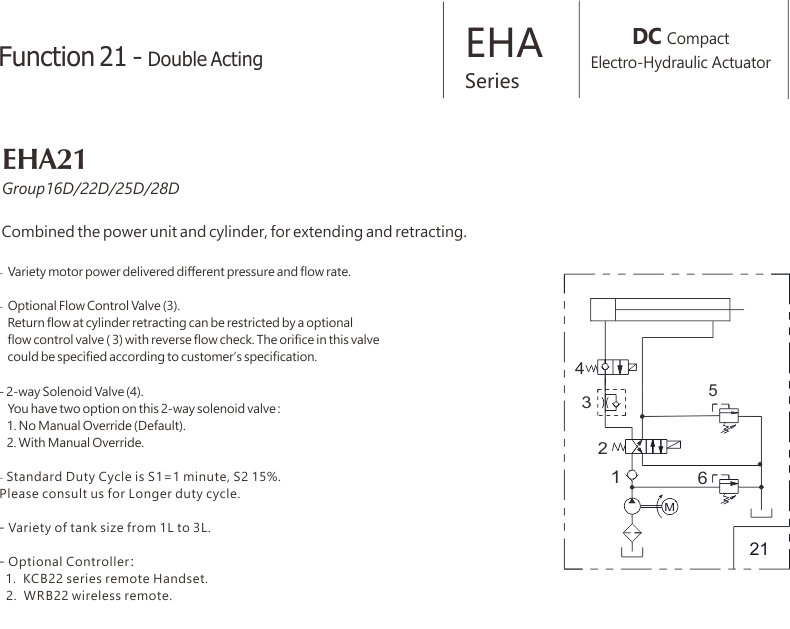

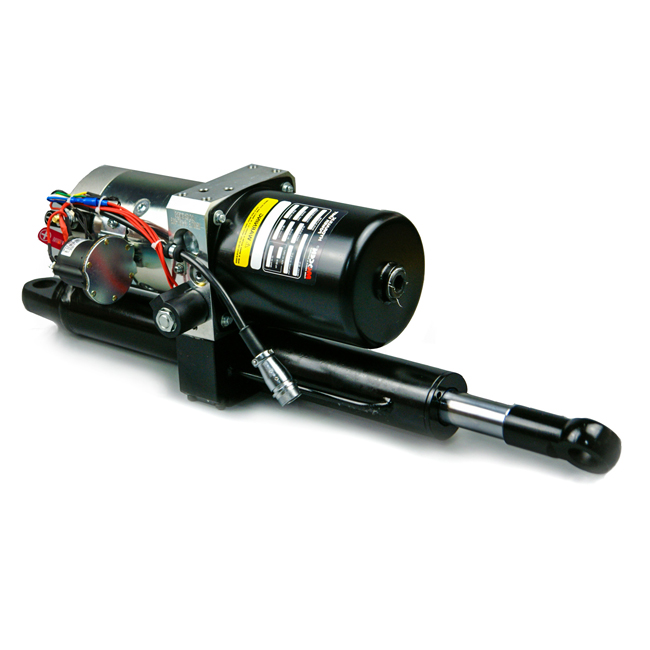

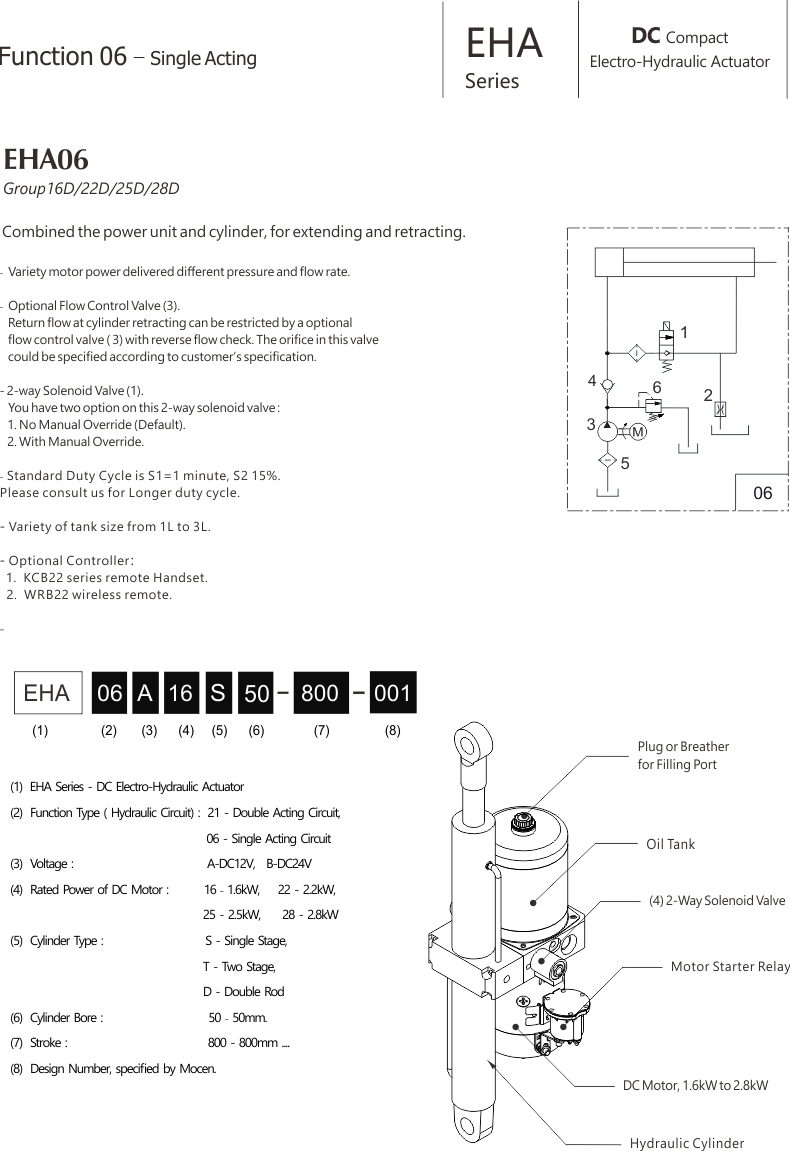

DC Electro-Hydraulic Actuator, combined the power unit and cylinder.

Single Acting (extending), and Double Acting (extending and retracting)

-  Variety motor power 1.6-2.8kw delivered different pressure and flow rate.

-  Optional Flow Control Valve (3).
Return flow at cylinder retracting can be restricted by a optional
flow control valve ( 3) with reverse flow check. The orifice in this valve
could be specified according to customer’s specification.

- 2-way Solenoid Valve (1).
You have two option on this 2-way solenoid valve :
1. No Manual Override (Default).
2. With Manual Override.

- Standard Duty Cycle is S1=1 minute, S2 15%. Please consult us for Longer duty cycle.

- Variety of tank size from 1L to 3L.

- Optional Controller：KCB22 series remote Handset.
