Sample product description

DP13M06-4*-RP, Single Acting

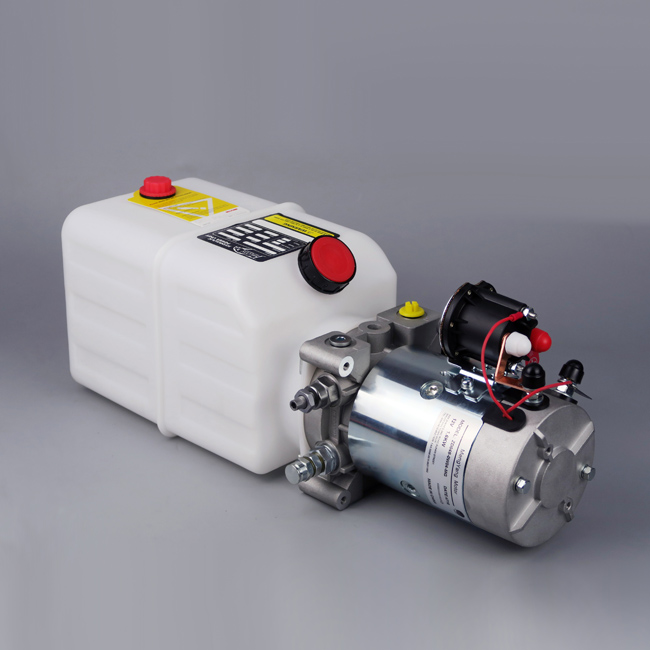

DC Hydraulic Power Unit, Single Acting

Driving multi double acting hydraulic cylinders extending and retracting.

Choose the appropriate power and pump size according to the load of your application.

Options for valve(1), 1) Solenoid Directional Valve,     2) Solenoid Directional Valve with Manual Override
Duty cycle is generally S2-1 minute, S3 - 15%. It may be varies with loads , please consult us.

Port P and T, standard options: 1) G3/8 (BSPP 3/8"),  2) SAE#6(9/16-18UNF),  3. M14. To custom-built other port size, please consult us.

Optional Tanks:  Series RP, LS, LT, MS, MT, details refer to page BB.

Controller Options:  KCB21 Series, the basic remote control handset,

Product features
