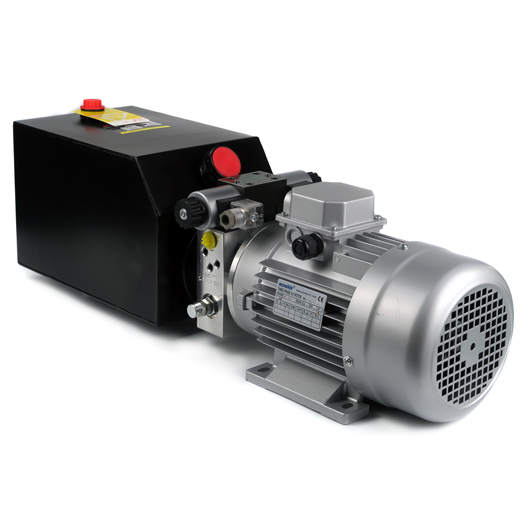

Compact AC HPU (Power Pack), Single-phase Electrical Motor
▍ Driving double acting hydraulic cylinder extending and retracting.
▍ Choose the appropriate power and pump size according to the load of your application.
▍ Directional Valve (3) Options : 1) 4-Way 3-Postion Directional Solenoid Valve; 2) Manual Valve ;3) Solenoid Valve with Manual Override
▍ Duty cycle is generally S1, It may be varies with loads , please consult us.
▍ Port A and B, standard options: 1. G3/8 (BSPP 3/8") 2. SAE#6(9/16-18UNF), 3. M14
▍ Optional Tanks: Series RP, LS, LT, MS, MT,
▍ Controller Options: 1) KCB22, the basic remote control handset.
