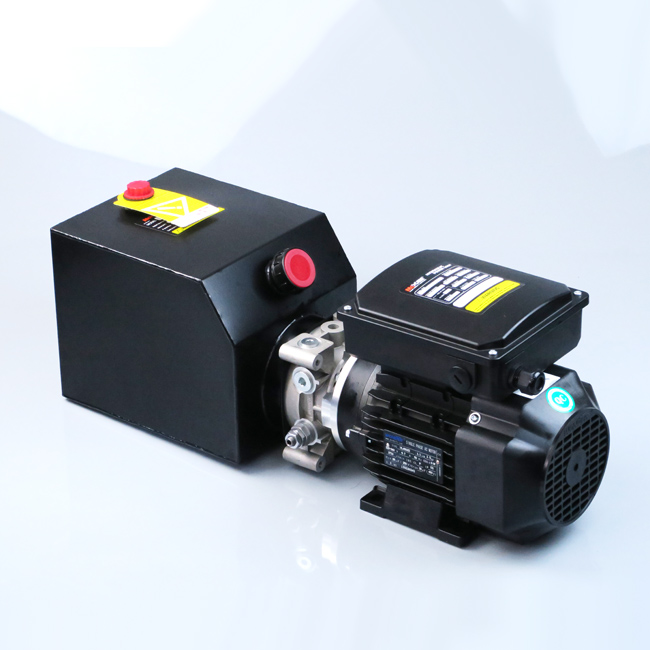

AC Hydraulic Power Unit, Single Acting, with IEC Motor, Single Phase , 0.37kW to 3kw

▍ Driving single acting hydraulic cylinders extending and retracting

▍ Choose the appropriate power and pump size according to the load of your application.

▍ Options for 2 -way valve(1) :1) Solenoid Valve,     2) Solenoid Valve with Manual Override
▍ Four options for controlling the Return Flow (down speed) by flow control valve (2):
1.  Non-Adjustable.
2.  Non Adjustable, with pressure compensate .
3.  Adjustable, with pressure compensate .
4.  No return flow controlDuty cycle is generally S2-1 minute, S3 - 15%. It may be varies with loads , please consult us.

▍ Duty cycle is generally S1 continuous duty.  It may be varies with loads , please consult us.

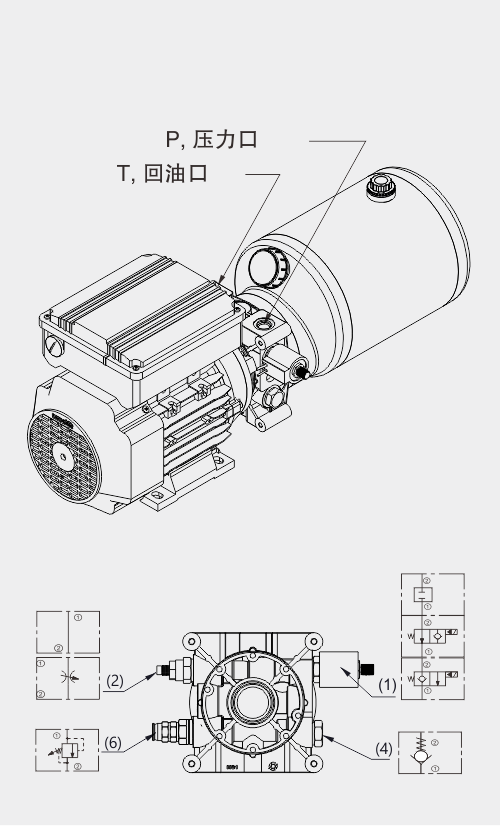

▍ Port P and T, standard options: 1) G3/8 (BSPP 3/8"),  2) SAE#6(9/16-18UNF),  3. M14. To custom-built other port size, please consult us.

▍ Optional Tanks:  Series RP, LS, LT, MS, MT.

▍ Controller Options:  KCB21 Series, the basic remote control handset,
