Sample product description

ATS-06,Signle Acting

AC Mini Hydraulic Power Unit

ATS Series, super slim profile size, total enclosure, IP68, aluminum housing, variety of functions

Super Slim, low profile size 93X93mm,

Aluminum housing with hard anodizing.

Low noise level 60dB.

High tolerable to tough working conditions.


Oil-immersed AC motor built-in.

Total enclosure with IP68 protection grade.

Fit in narrow space .

Rated Power 350W.









- Drive single acting hydraulic cylinder or actuator.

- Variety of option for special application requirments .

- Pressure Port:    1. G1/4 (BSPP 1/4"),2. NPT 1/8", 3. M8X1

- Rated Power: Ouput 350W,

- Voltage: 1) AC 220-240V single phase 50Hz ,2)380V three phase , 3) AC 110V single phase, 60Hz, 4) AC 230V, 60Hz, three Phase

- Duty Cycle: Intermittent, S2=30s, S3 15% ED.

- Max Pressure: 170Bar (2450PSI)

- Proof Pressure: 230 Bar (3335PSI)

Product features

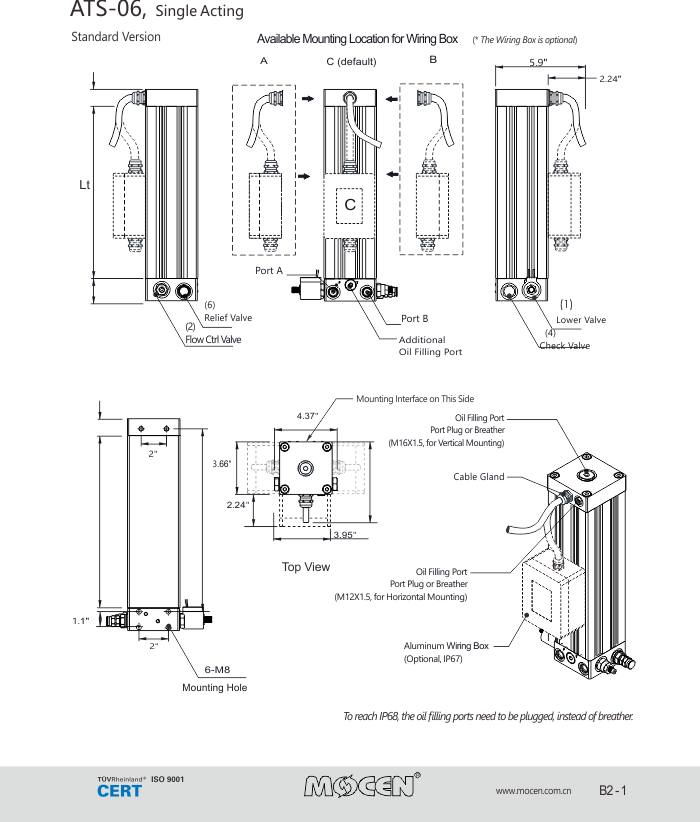

Outline dimension drawing
ATS06-外形尺寸 -1.pngATS06-外形尺寸 -2.png
