DP13M13X-V, Double Acting, Exp

Expandable Circuit Design


- Driving multiple double acting hydraulic cylinders extending and retracting.
- Choose the appropriate power and pump size according to the load of your
application. Please refer to Page A-01 or consult us.
-  Options for 3W4P directional valve(3), more details refer to page  DD.
1.  Solenoid Valve.
2.  Solenoid Valve with Manual Override

- Duty cycle is generally S2-1 minute, S3 - 15%.
It may be varies with loads , please consult us.
- Port A and B, standard options:
1. G3/8 (BSPP 3/8")
2. SAE#6(9/16-18UNF),
3. M14
- Optional Tanks:
Series RP, LS, LT, MS, MT, details refer to page BB.
- Controller Options:
1) KCB Series, the basic remote control handset,
able to control 3 paths max.
2) WRV Series,  industrial grade wireless remote,
able to control 3 paths max.

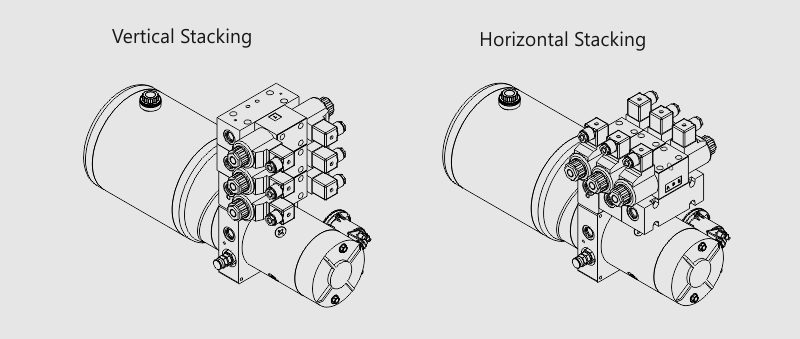

Structure diagram

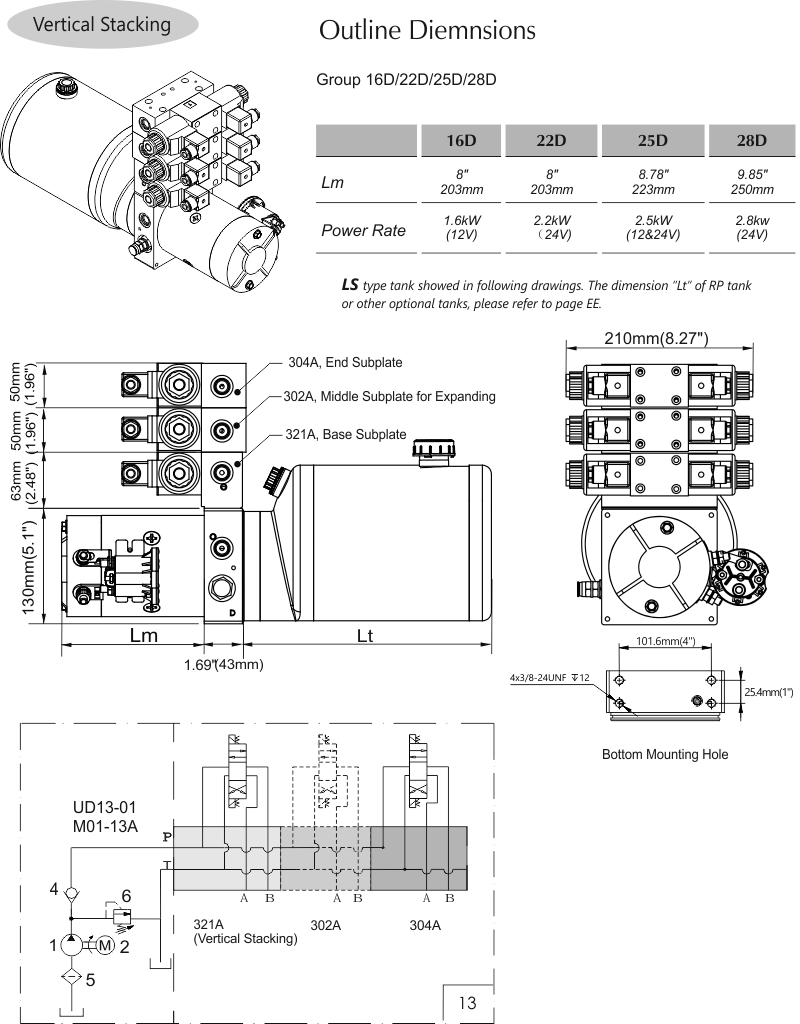

Outline dimension drawing
