Sample product description

DP11M31-*-RS, Double Acting

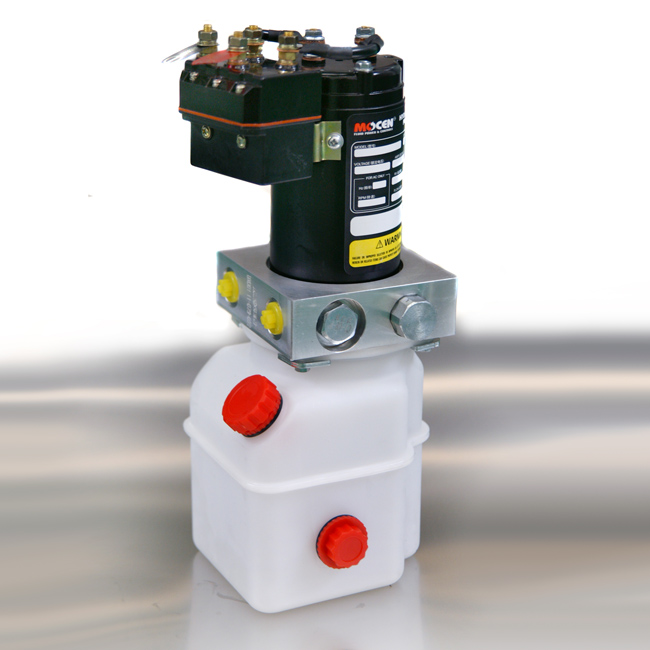

Mini DC Hydraulic Power Unit, Bi-rotation Double Acting


Bi-rotaion Circuit Driving double acting hydraulic cylinder extending and retracting

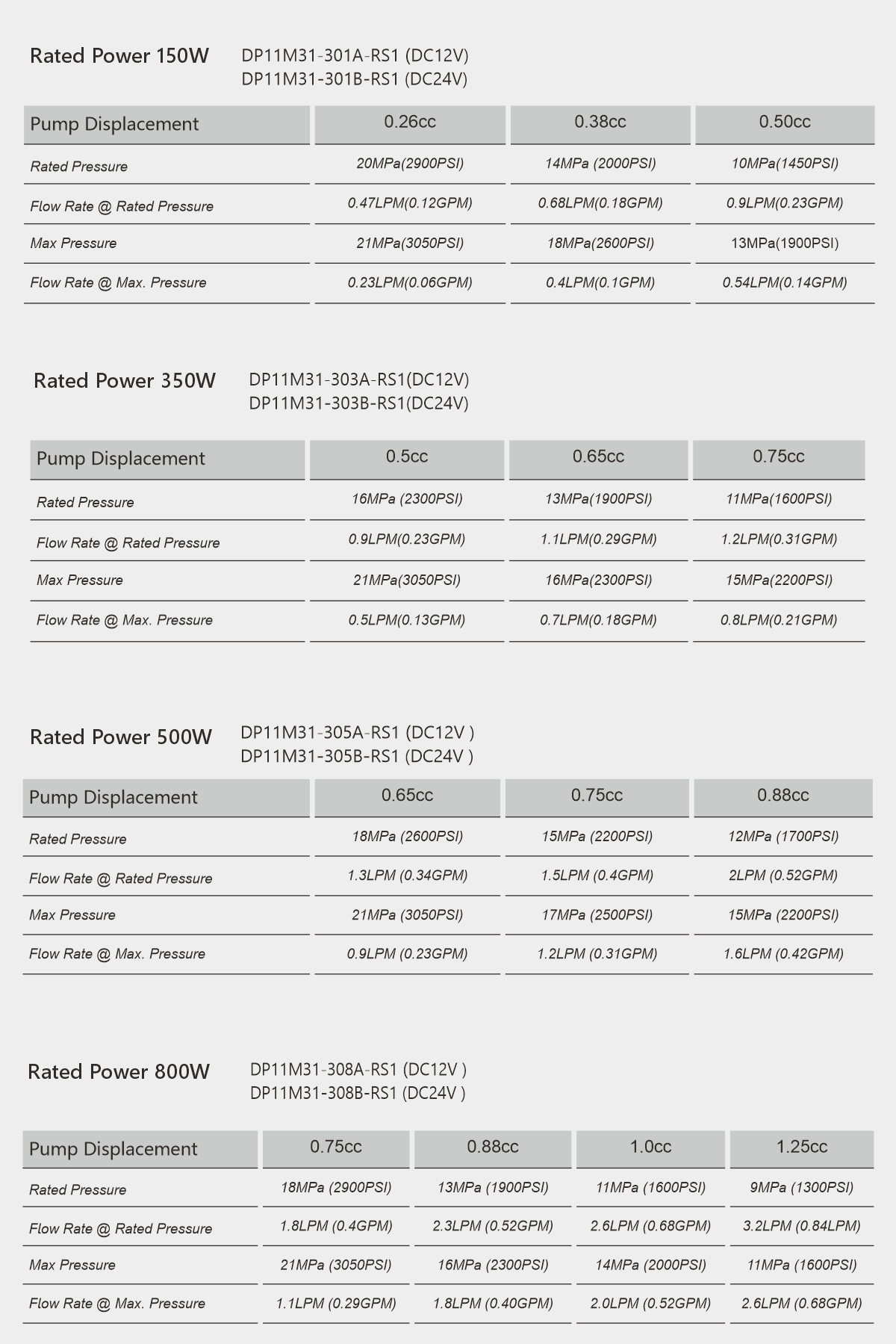

Choose the appropriate power and pump size according to the load of your application.

Duty cycle is generally S2-1 minute, S3 - 15%. It may be varies with loads , please consult us.
Port P and T, standard options: 1. G1/4 (BSPP 1/4"); 2. SAE#6(9/16-18UNF); 3. M14 X1.5. To custom-built other port size, please consult us.

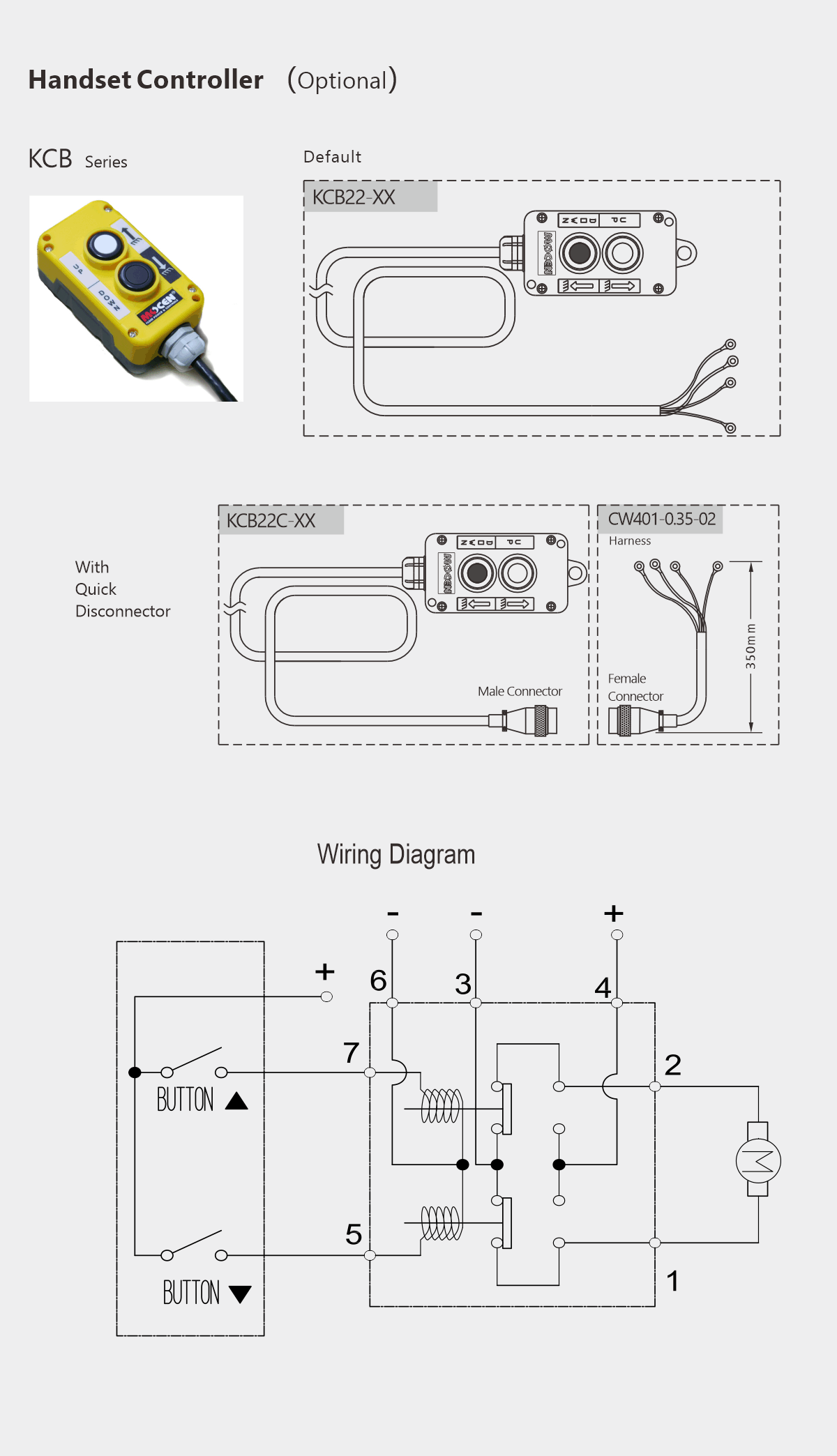

Controller Options: 1) KCB22, the basic remote control handset.


Product features
