Sample product description

AP13M13*-E*S, AC, Double Act.

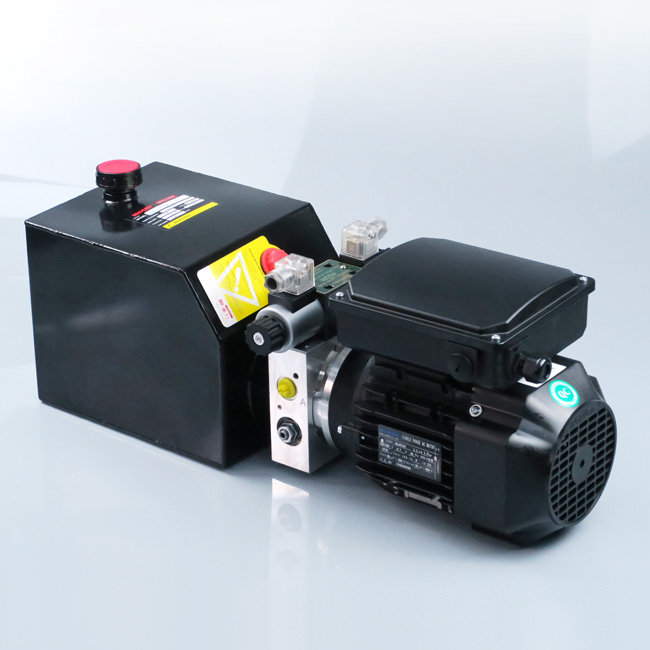

Compact AC HPU (Power Pack), Single-phase Electrical Motor


Driving double acting hydraulic cylinder extending and retracting.

Choose the appropriate power and pump size according to the load of your application.
Directional Valve (3) Options : 1)  4-Way 3-Postion Directional Solenoid Valve; 2)  Manual Valve ;3) Solenoid Valve with Manual Override
Duty cycle is generally S1, It may be varies with loads , please consult us.
Port A and B, standard options: 1. G3/8 (BSPP 3/8") 2. SAE#6(9/16-18UNF), 3. M14

Optional Tanks: Series RP, LS, LT, MS, MT,

Controller Options:  1) KCB22, the basic remote control handset.

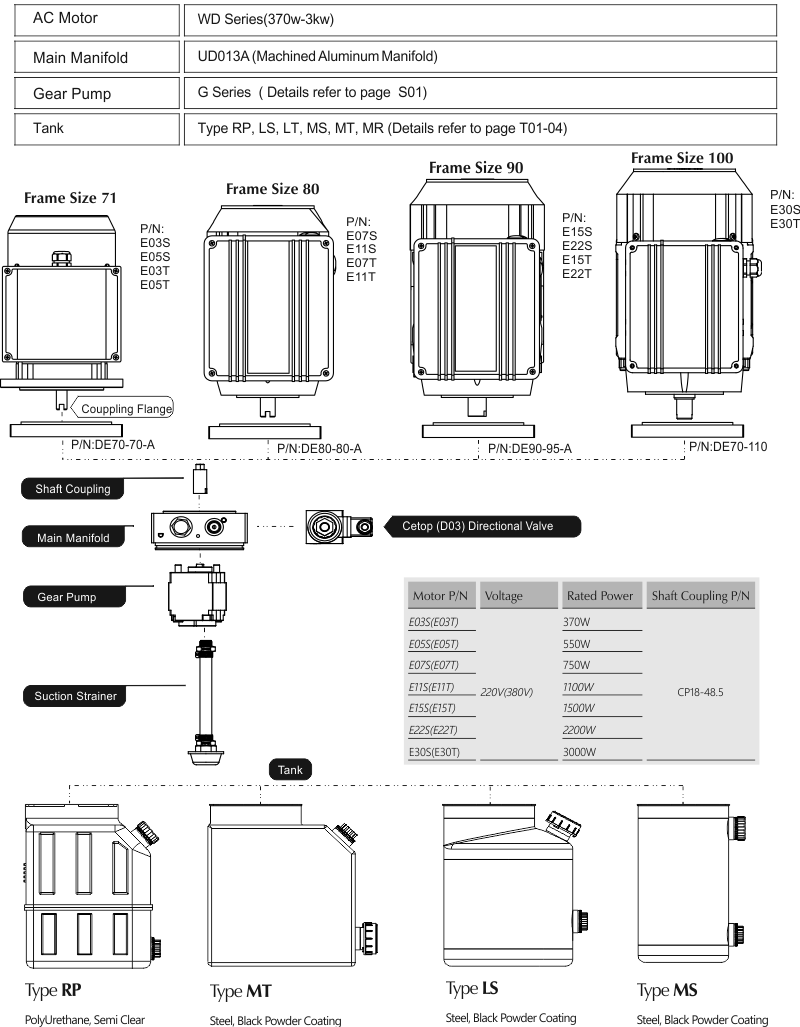

Structure diagram
