Sample product description

Series DP09, Double Acting

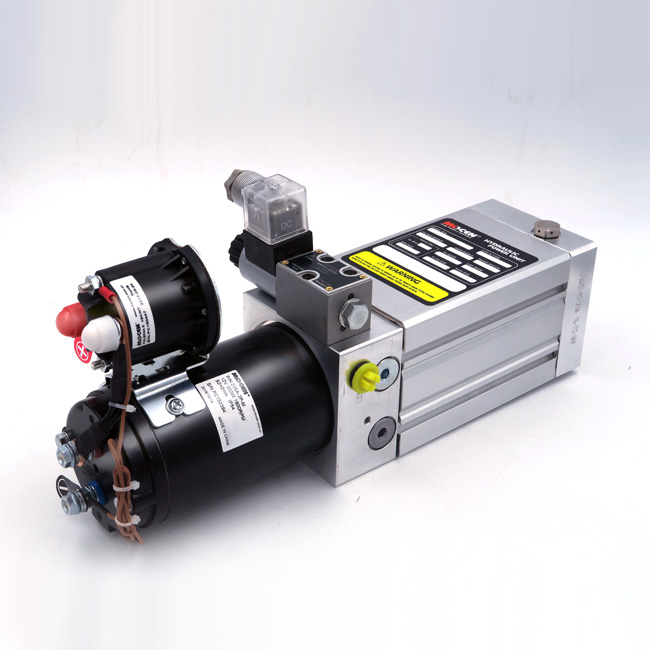

  • Micro DC Hydraulic Power Unit


Driving double acting hydraulic cylinder extending and retracting.
Choose the appropriate power and pump size according to the load of your application.

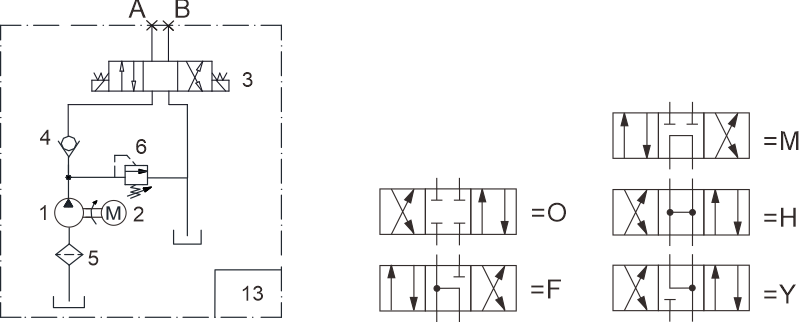

Options for 3W4P directional valve(3):  1)  Solenoid Valve, or  2)  Solenoid Valve with Manual Override
Duty cycle is generally S2-2 minute, S3 - 15%, It may be varies with loads , please consult us.
Port A and B, standard options: 1. G1/4 (BSPP 1/4") , 2. SAE#4(7/16-20UNF), To custom-built other port size, please consult us.

Flexible Tank Length



Product features
