Sample product description

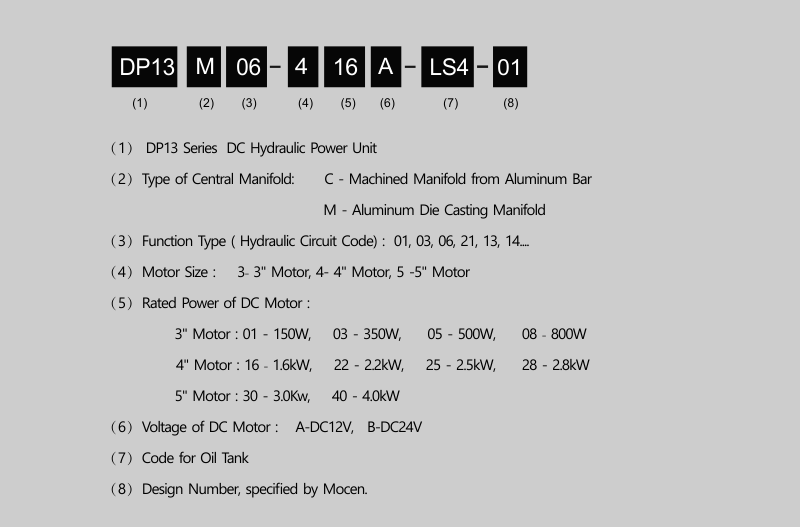

DP13M06-3*-MS*, Single Acting

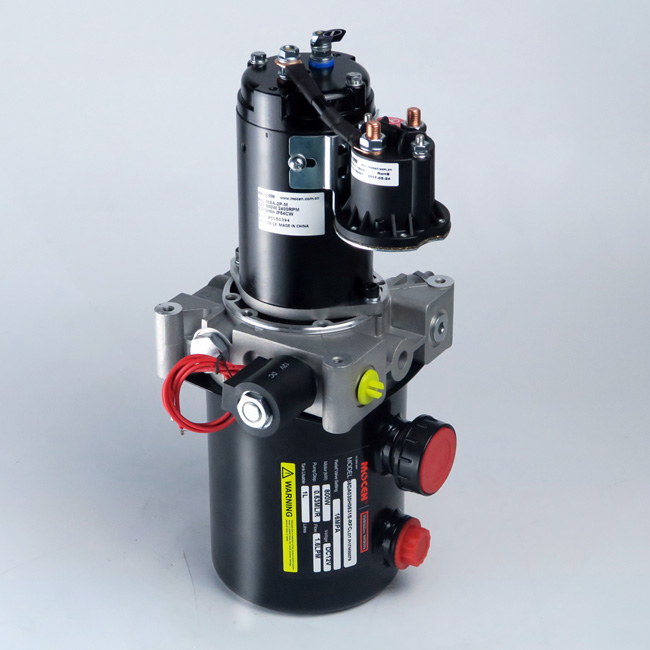

DC Hydraulic Power Unit, Single Acting, 150 to 800W, DC12Vor24V


Driving single acting hydraulic cylinder or hydraulic motor.
Choose the appropriate power and pump size to meet your application. Please refer to Chart of Flow Rated vs. Pressure or, or consult us.

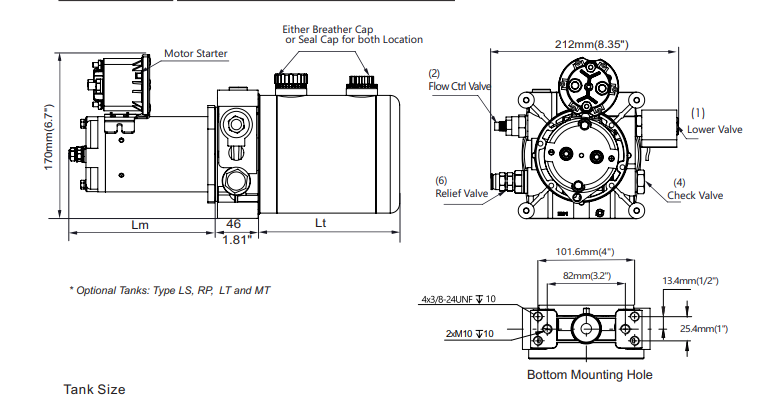

Four options for controlling the Return Flow (down speed) by flow control valve (2):
1) Non-Adjustable.     2) Non Adjustable, with pressure compensate . 3)  Adjustable, with pressure compensate .
4) No flow control Valve
Three options for 2-way valve(1):  1) Manual Valve, 2)  Solenoid Valve, 3) Solenoid Valve with Manual Override
Duty cycle is generally S2-1 minute, S3 - 15%, It may be varies with loads , please consult us.

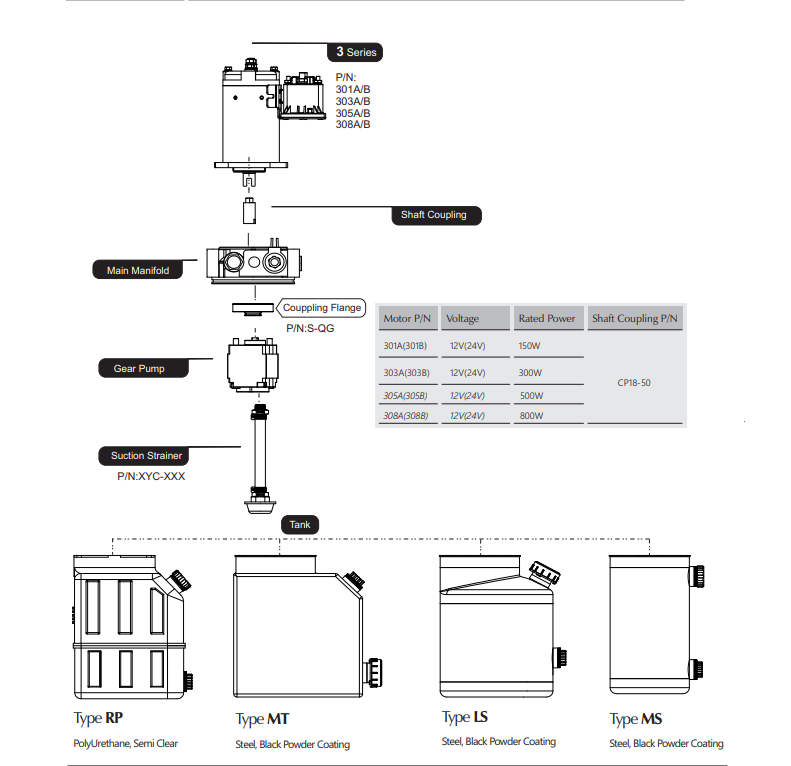

Optional Tanks: Type MS, and Type LS, RP, LT and MT
Controller Options: KCB21, the basic remote control handset,

Port P and T, standard options: 1) G3/8 (BSPP 3/8"), 2) SAE#6(9/16-18UNF),  3) 3. M14


Product features
