DP13C06-4*-LS, Single Acting

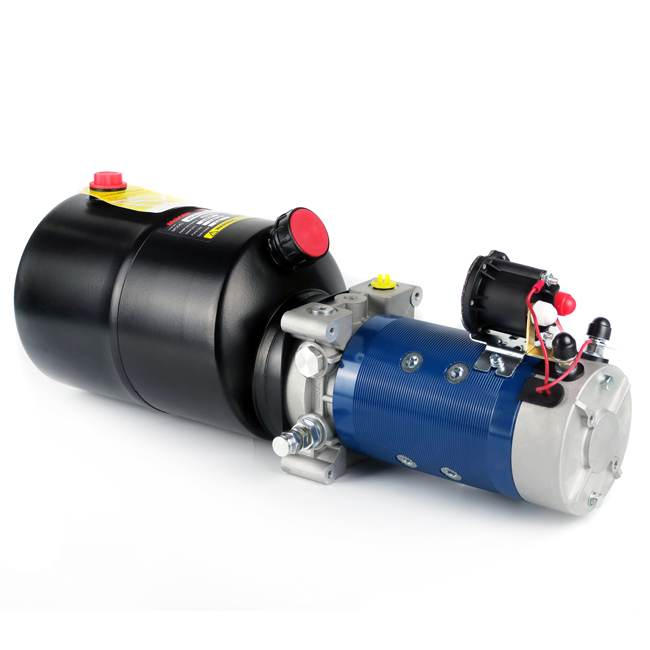

DC Hydraulic Power Unit, Single Acting

Driving single acting hydraulic cylinder extending, force /gravity back.

Choose the appropriate power and pump size according to the load of your application.

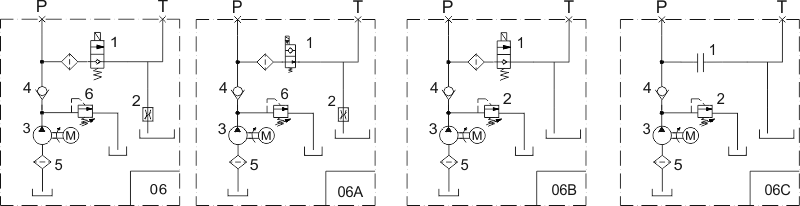

Four options for controlling the Return Flow (down speed) by flow control valve (2):
1) Non-Adjustable.     2) Non Adjustable, with pressure compensate . 3)  Adjustable, with pressure compensate .
4) No flow control Valve
Three options for 2-way valve(1):  1) Manual Valve, 2)  Solenoid Valve, 3) Solenoid Valve with Manual Override
Duty cycle is generally S2-1 minute, S3 - 15%, It may be varies with loads , please consult us.

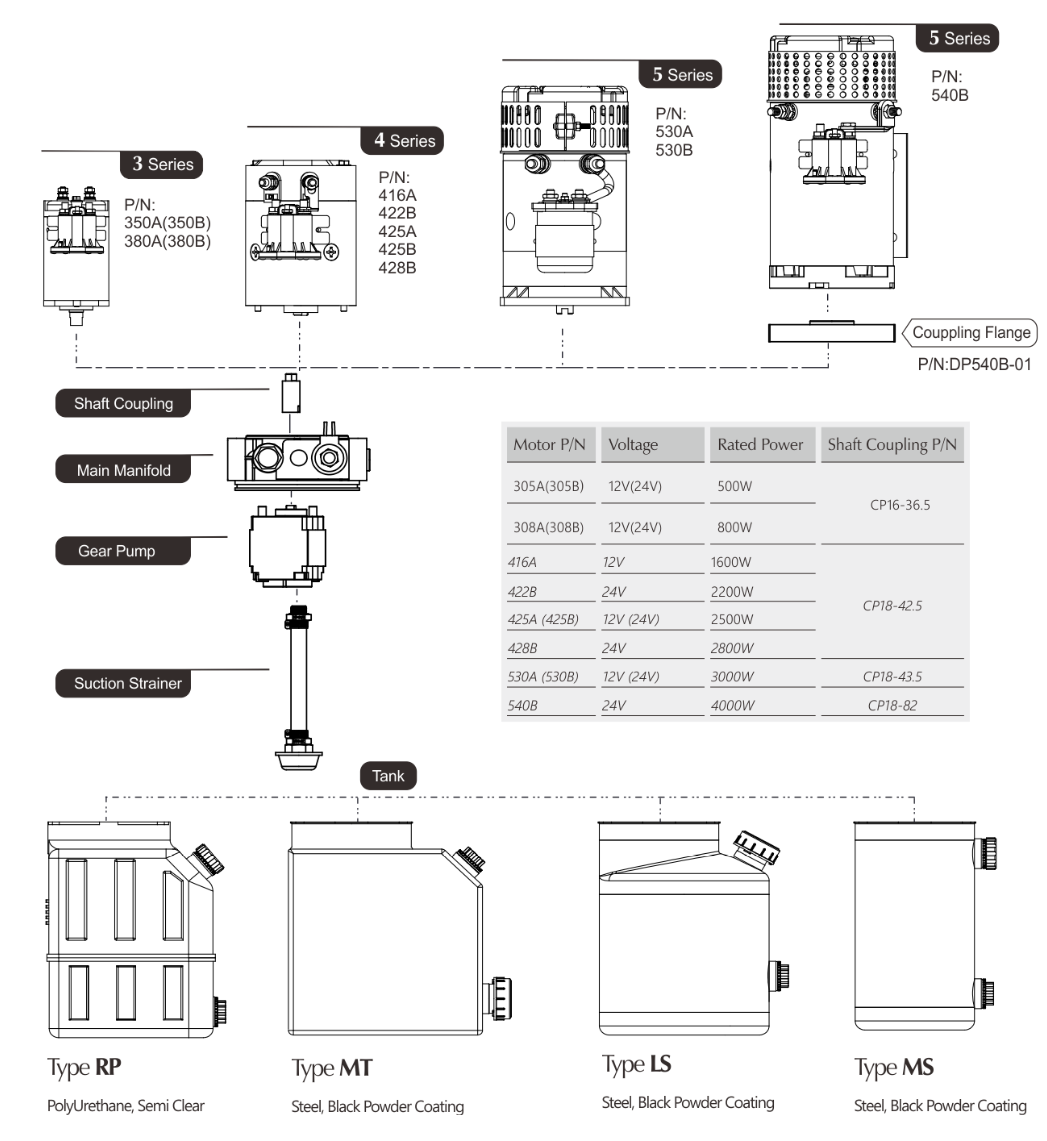

Optional Tanks: Type MS, and Type LS, RP, LT and MT
Controller Options: KCB21, the basic remote control handset.

Port P and T, standard options: 1) G3/8 (BSPP 3/8"), 2) SAE#6(9/16-18UNF),  3) 3. M14
