DC Hydraulic Power Unit
With Sectional Directional Valves, Multi Output
▍ Driving multi double acting hydraulic cylinders extending and retracting.
▍ Choose the appropriate power and pump size according to the load of your application.

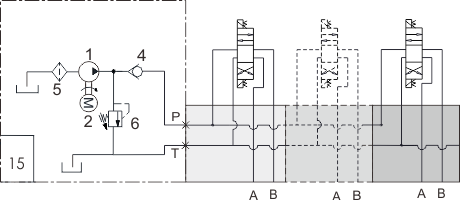

▍ Options for 3W4P directional valve(3), 1) Solenoid Directional Valve, 2) Solenoid Directional Valve with Manual Override
▍ Duty cycle is generally S2-1 minute, S3 - 15%. It may be varies with loads , please consult us.
▍ Port A and B, standard options: 1) G3/8 (BSPP 3/8"), 2) SAE#6(9/16-18UNF), 3. M14. To custom-built other port size, please consult us.
▍ Optional Tanks: Series RP, LS, LT, MS, MT, details refer to page BB.

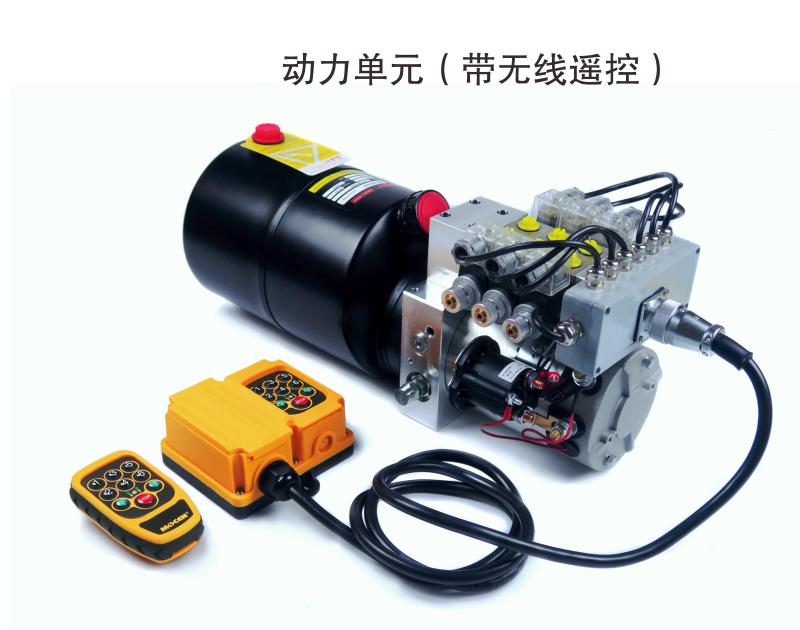

▍ Controller Options: 1) KCB Series, the basic remote control handset, able to control 5 paths. 2) WRV Series, industrial grade wireless remote, able to control 3 paths max.
