Sample product description

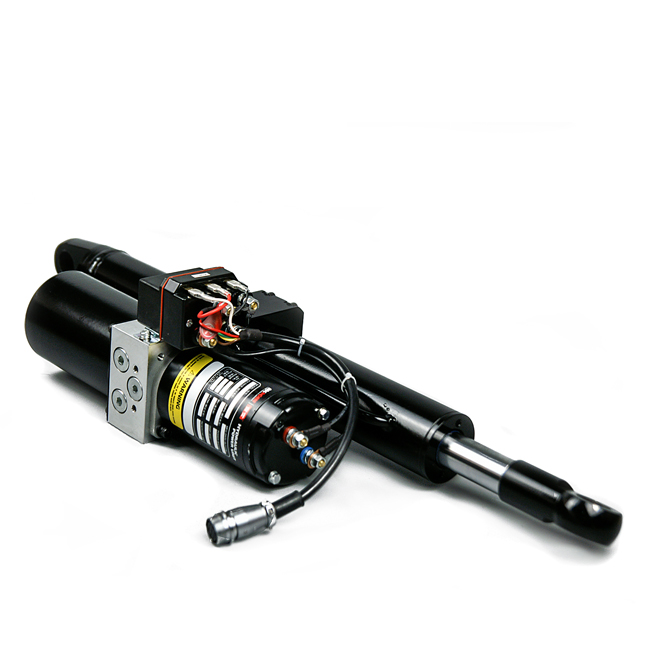

Series EHB, DC Hydra Actuator

DC Electro-Hydraulic Actuator, combined the power unit and cylinder.

Single Acting (extending), and Double Acting (extending and retracting)


-  Variety motor power 150-800w delivered different pressure and flow rate.

-  Optional Flow Control Valve (3).
Return flow at cylinder retracting can be restricted by a optional
flow control valve ( 3) with reverse flow check. The orifice in this valve
could be specified according to customer’s specification.

- 2-way Solenoid Valve (1).
You have two option on this 2-way solenoid valve :
1. No Manual Override (Default).
2. With Manual Override.
Product features
